TRUMPF TOOLING

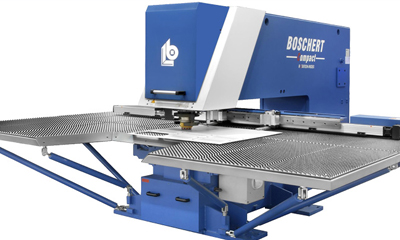

Trumpf Style Tooling suit to Trumpf machine,Boschert machine,Haco machine,Euromac machine.





Trumpf tooling products range:

Standard Tooling

R.I.System.  2.4.1 NEXT type



Multi-Tool, MT5,MT10

Parting Tool,5X56,5X76.2

PU slitting

Accessories,Catridge,die plate,adaptor

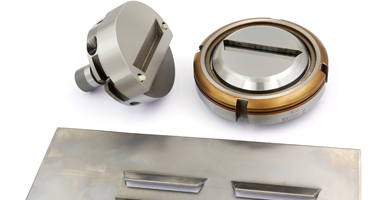

                      Trumpf forming tools

Forming tooling-Center Point,Extrusion Tapping,Emboss,Rib,Countersink,Bridge,Knockout,Dimple,shearbutton,Logo stamping,Letter scrible,Louver,Card guide,Wheel offset,Wheel rib,Wheel Deburring,Lance and form,Marking Tool,Locator Tool,Thread forming, Thread loop.

Punch material: M2-SKH51-High speed steel, Hardness HRC 60°-64°,

Die material:D2-SKD11, Hardness HRC 58°-60°

TICN/ Optima/Maxima coating optional and vailable

TRUMPF TOOLING SYSTEM

Tooling system including punch,alignment ring,stripper,die,adaptor

Shape location,    Die clearance chart

 Popular Punch Type : Whisper,Rooftop.

Trumpf tooling punch length

*Flat Punch for group I ---77mm long,flat punch for other group---74mm long

*All whisper punch — 77mm long, To order whisper,please specify

*Punch in 10~35mm with 5° , punch over 35mm with 3mm height

*Whisper punch can reduce noise and tonnage

Leading time: Std shape 3-5 days, Special shape 4-5 days,

Forming tooling 5-10 days.Coating need extra 3-4 days

Package: Extra thick carton or poly wood case.

Deliver by HL,TNT,UPS,FEDEX,AIRLINE
