AMADA TOOLING SYSTEM COMPARISION

Chart show different feature for each tooling type

	A.B STATION				C,D,E STATION
	BASIC type	FAB type	FAB 90	FAB ULTRA	BASIC type	FAB type	FAB 90
Grind Life	2.0mm	5.0mm	6.3mm	6.0mm	2.0mm	5.0mm	8.0mm
Adjust	Need tool	No tool	No tool	No tool	Need shims	No shims	No shims
Compatiable	Amada Std.	Amada NEX	Wilson HP	Mate Ultra	Amada Std.	AMADA alpha	Wilson HP

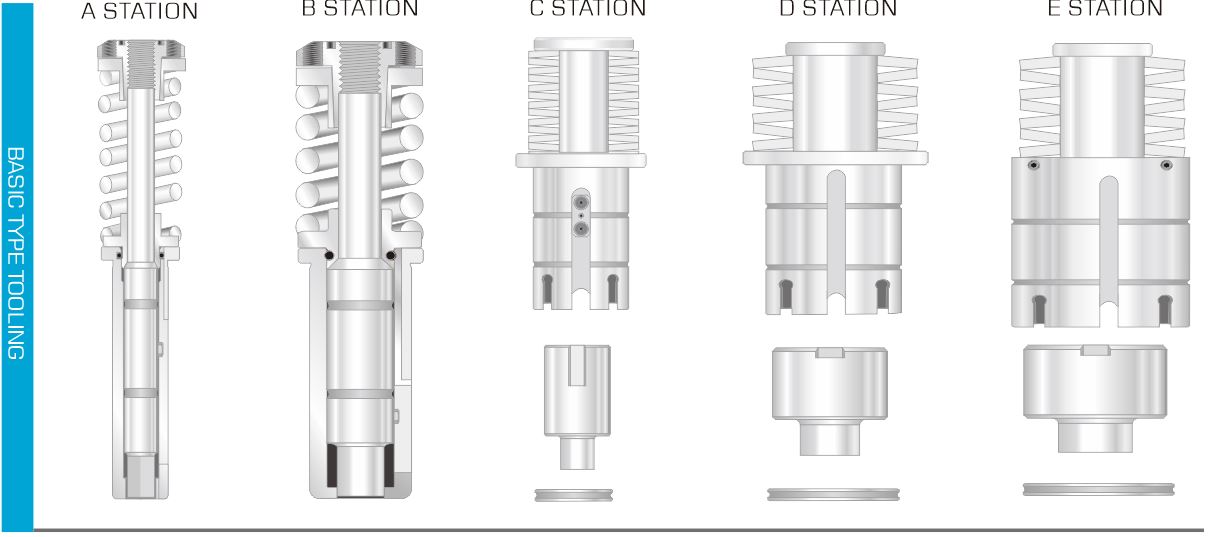

Basic type is fully compatible with OEM popular series,Amada ,Mate original,Wilson metric.Best

ecomonic type,save big cost.An economic ,Durablity,Performance,Lower cost type

FAB type is a better tooling，Durability,Performance,Long grinding life,Quick adjust,Compatible with

amada punch,Exchange with NEX,Quickadjust,Rapidset,No need tools to adjust punch

FAB2 type similar with Nex 3, lock punhc system，Durability,Performance,Long grinding life,Quick adjust,Compatible with amada punch,Exchange with NEX,Quickadjust,Rapidset,No need tools to adjust punch

FAB 90 type is a best tooling Durability,Performance,Grind life punch:6.0mm,Exchange with Wilson

S90 series,Quickly adjust, no need tools to adjust

FAB ULTRA type is a smart design.Durability,Performance.Grind life Punch:6.0mm,Compatibale with Mate Ultra series.Quickly adjust,no need tools to adjust

Special design for very small slim size,with several design feature, including:1.Longer support for punch tip by stripper or guide 2. At least double punch life,reduce punch damaging, thick turret amada tooling
